Product details
Brand: Ronstan

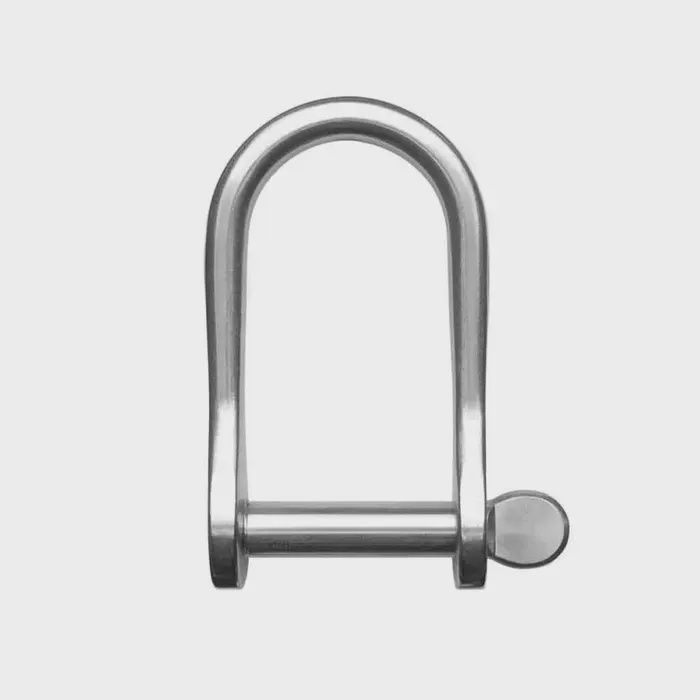

Stainless Steel Wide D Shackle, 5/16" Pin, Coined Head
Grade 316 stainless steel Wide D shackle, 5/16" diameter pin with a coined shackle pin head.
FEATURES
High strength to weight ratio
Specifications
| Weight (g) | 70 |
|---|---|
| P.L. B.L. (kg) | 1700 |
| U.D.L. B.L. (kg) | 3400 |
| Shackle Pin Product No. | - |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |
